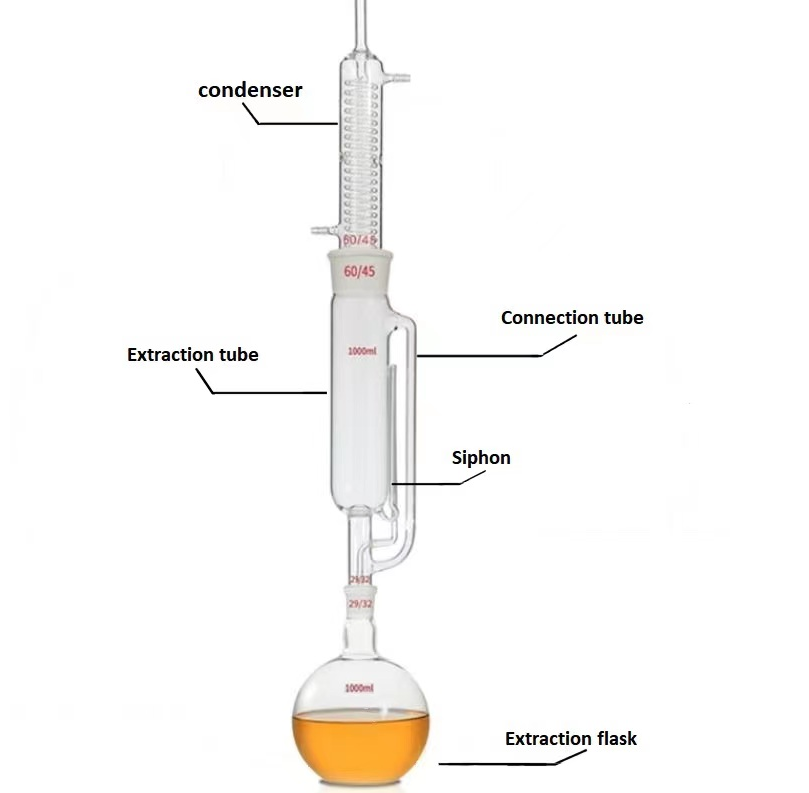

Characterization |
|||
volume |
condenser |
Extraction tube |
Extraction flask |
| 60ml | Standard Taper Joint Top:
34/35 mm |
Length:230mm | Standard Taper Joint Top:
19/26mm |
| Effective length:230mm | Upper Standard Taper Joint Top:
34/35mm |
||
| Shape:
Ball-shaped condenser Snake-shaped condenser |
Lower Standard Taper Joint Top:
19/26mm |
||
| 150ml | Standard Taper Joint Top:
34/35mm |
Length:245mm | Standard Taper Joint Top:
19/26mm |
| Effective length:230mm | Upper Standard Taper Joint Top:
34/35mm |
||
| Shape:
Ball-shaped condenser Snake-shaped condenser |
Lower Standard Taper Joint Top:
19/26mm |
||
| 250ml | Standard Taper Joint Top:
40/38 mm |
Length:280mm | Standard Taper Joint Top:
24/29mm |
| Effective length:230mm | Upper Standard Taper Joint Top:
40/38mm |
||
| Shape:
Ball-shaped condenser Snake-shaped condenser |
Lower Standard Taper Joint Top:
24/29mm |
||
| 500ml
|
Standard Taper Joint Top:
50/42mm |
Length:320mm | Standard Taper Joint Top:
24/29mm |
| Effective length:260mm | Upper Standard Taper Joint Top:
50/42 mm |
||
| Shape:
Ball-shaped condenser Snake-shaped condenser |
Lower Standard Taper Joint Top:
24/29mm |
||
| 1000ml | Standard Taper Joint Top:
60/45mm |
Length:395mm | Standard Taper Joint Top:
29/32mm |
| Effective length：300mm | Upper Standard Taper Joint Top:
60/45mm |
||
| Shape:
Ball-shaped condenser Snake-shaped condenser |
Lower Standard Taper Joint Top:
29/32mm |
||
| 2000ml | Standard Taper Joint Top
:70/50mm |
Length:445mm | Standard Taper Joint Top:
29/32mm |
| Effective length:370mm | Upper Standard Taper Joint Top:
70/50mm |
||
| Shape:
Ball-shaped condenser Snake-shaped condenser |
Lower Standard Taper Joint Top:
29/32mm |
||
Art.No. |
Description |
Online Price |
1set of Equipment |
||
| SE0060B | Soxhlet extractor,Ball-shaped, 60ml,1set/pk | |
| SE0060S | Soxhlet extractor,Snake-shaped,60ml,1set/pk | |
| SE0150B | Soxhlet extractor,Ball-shaped,150ml,1set/pk | |

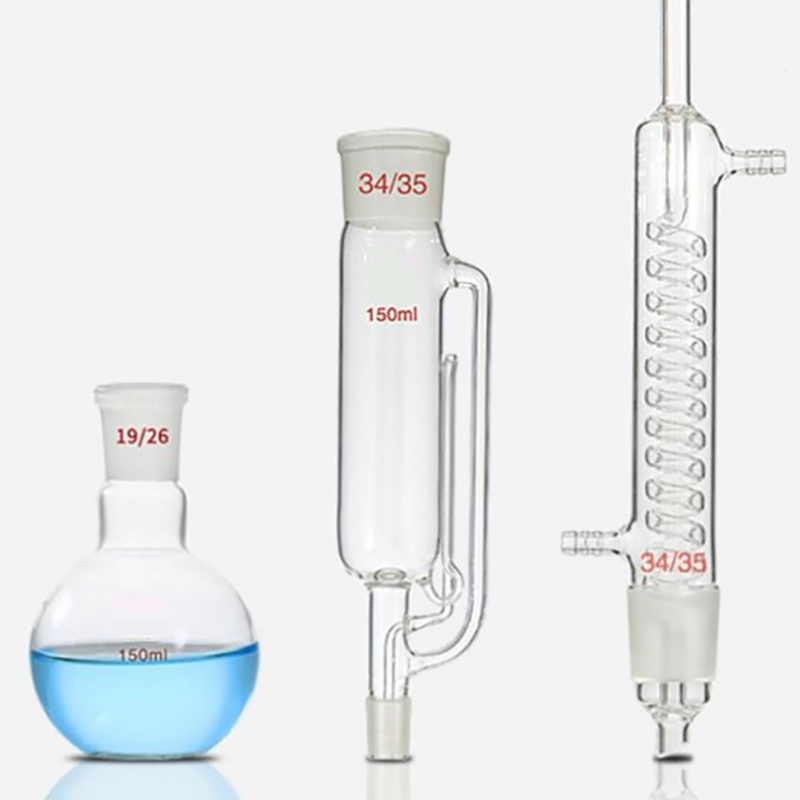

| SE0150S | Soxhlet extractor,Snake-shaped,150ml,1set/pk | |
| SE0250B | Soxhlet extractor,Ball-shaped,250ml,1set/pk | |
| SE0250S | Soxhlet extractor,Snake-shaped,250ml,1set/pk | |

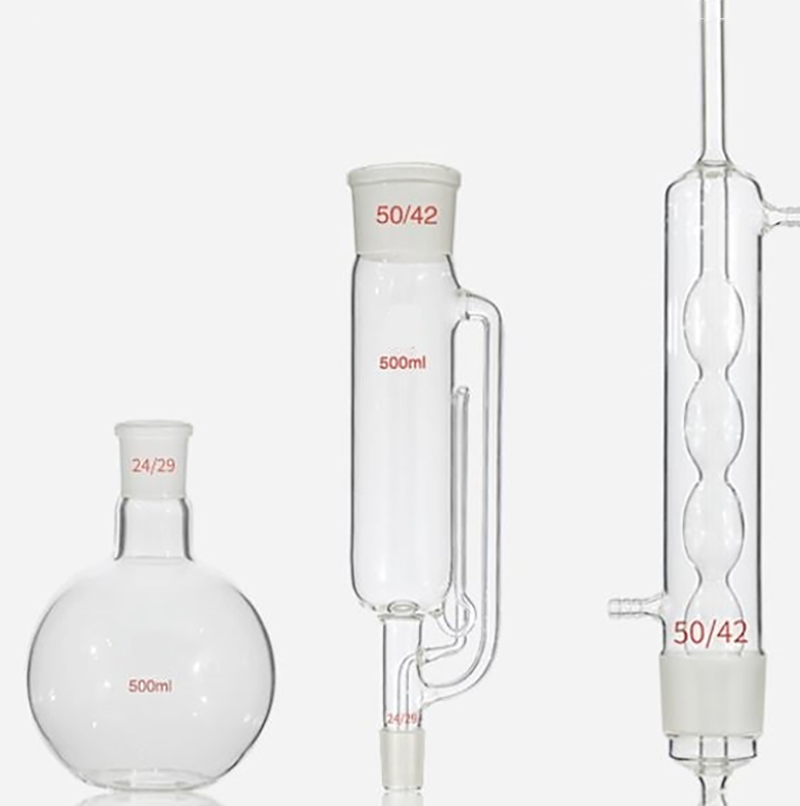

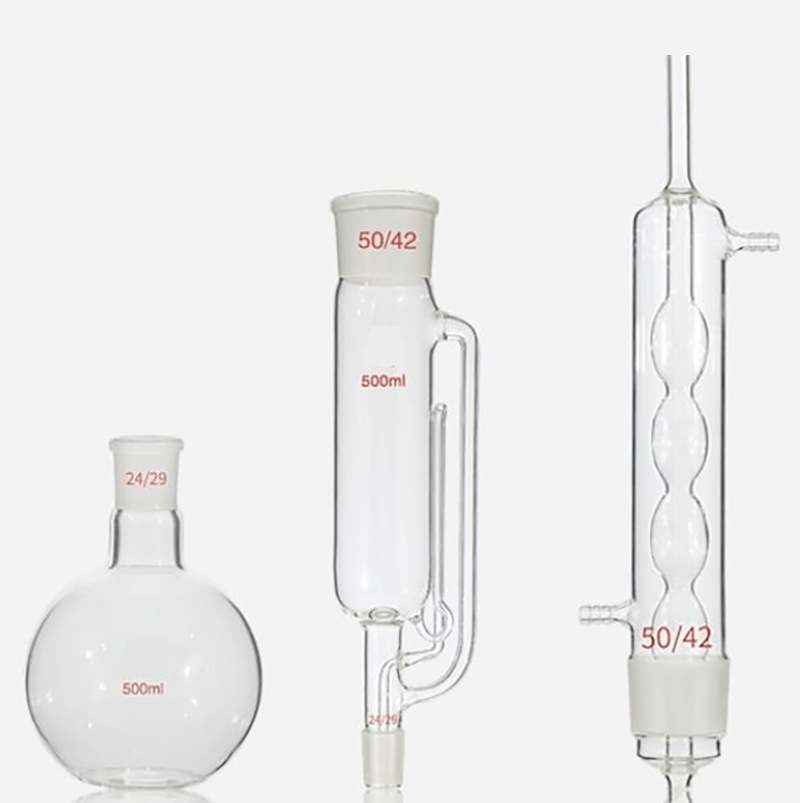

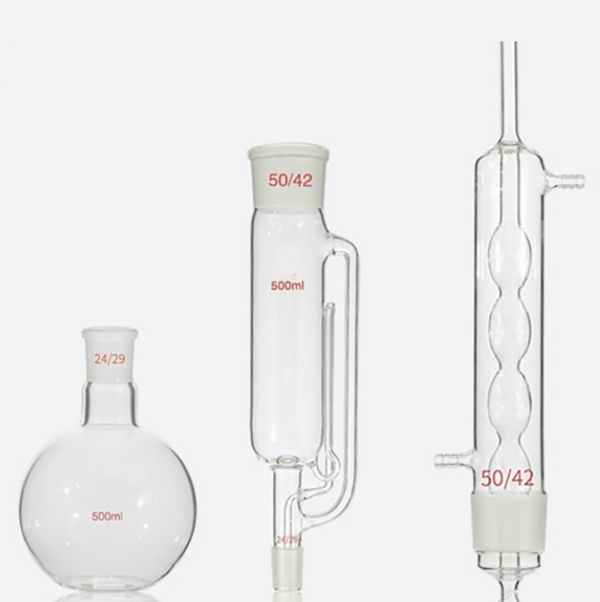

| SE0500B | Soxhlet extractor,Ball-shaped,500ml,1set/pk | |
| SE0500S | Soxhlet extractor,Snake-shaped,500ml,1set/pk | |
| SE1000B | Soxhlet extractor,Ball-shaped,1000ml,1set/pk | |
| SE1000S | Soxhlet extractor,Snake-shaped,1000ml,1set/pk | |
| SE2000B | Soxhlet extractor,Ball-shaped,2000ml,1set/pk | |
| SE2000S | Soxhlet extractor,Snake-shaped,2000ml,1set/pk | |

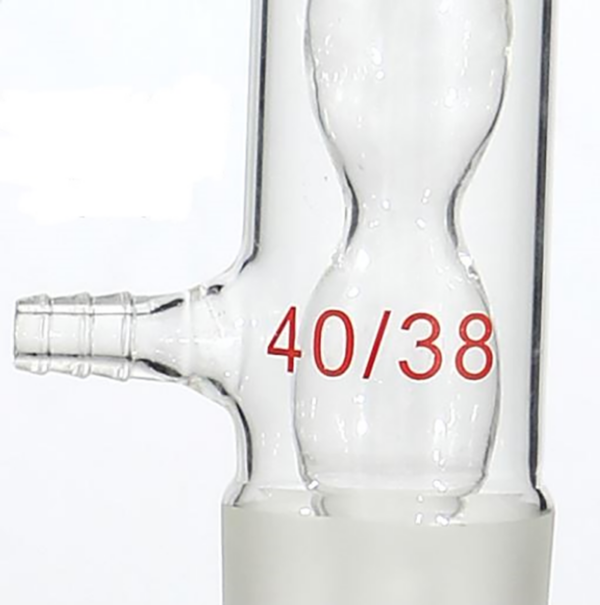

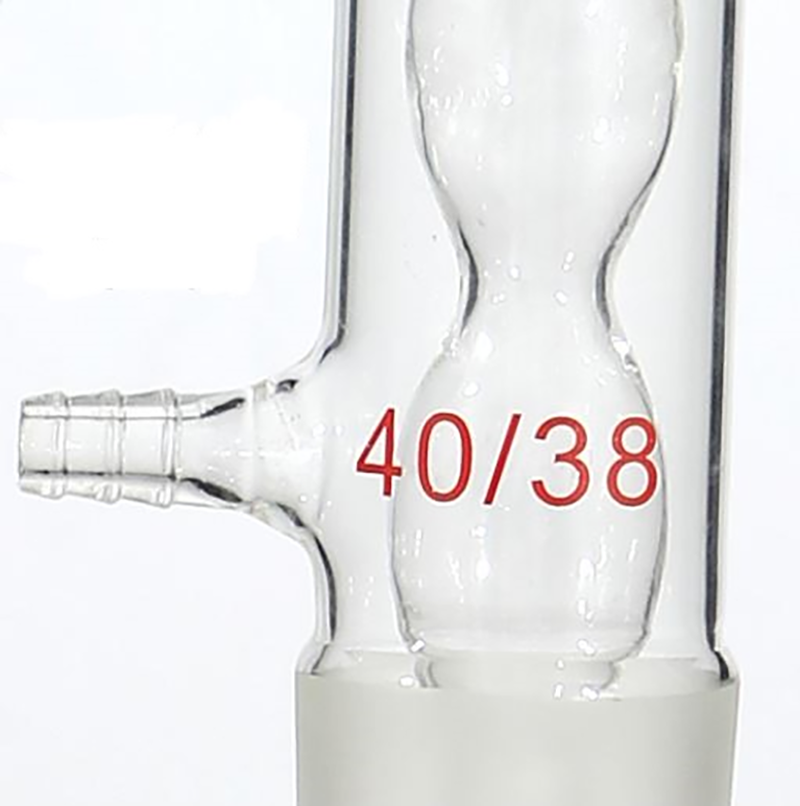

Condenser |
||
| SE0060BC | Ball-shaped condenser for use with Soxhlet extractor ,60ml,Effective length of 230mm,34/35 Standard Taper Joint | |
| SE0060SC | Snake-shaped condenser for use with Soxhlet extractor,60ml,
Effective length of 230mm,34/35 Standard Taper Joint |
|
| SE0150BC | Ball-shaped condenser for use with Soxhlet extractor,150ml,
Effective length of 230mm,40/38Standard Taper Joint |
|
| SE0150SC | Snake-shaped condenser for use with Soxhlet extractor,150ml,
Effective length of 230mm,40/38 Standard Taper Joint |
|
| SE0250BC | Ball-shaped condenser for use with Soxhlet extractor,250ml,
Effective length of 230mm,40/38 Standard Taper Joint |
|
| SE0250SC | Snake-shaped condenser for use with Soxhlet extractor,250ml,
Effective length of 230mm,40/38 Standard Taper Joint |
|
| SE0500BC | Ball-shaped condenser for use with Soxhlet extractorr,500ml,
Effective length of 260mm,50/42 Standard Taper Joint |
|
| SE0500SC | Snake-shaped condenser for use with Soxhlet extractor,500ml,
Effective length of 260mm,50/42 Standard Taper Joint |
|
| SE1000BC | Ball-shaped condenser for use with Soxhlet extractor,1000ml,
Effective length of300mm,60/45 Standard Taper Joint |
|
| SE1000SC | Snake-shaped condenser for use with Soxhlet extractor,1000ml,
Effective length of300mm,60/45 Standard Taper Joint |
|
| SE2000BC | Ball-shaped condenser for use with Soxhlet extractor,2000ml,
Effective length of370mm,70/50 Standard Taper Joint |
|
| SE2000SC | Snake-shaped condenser for use with Soxhlet extractor,2000ml,
Effective length of370mm,70/50 Standard Taper Joint |
|
Extraction Tube |
||
| SE0060ET | Extraction tube for use with Soxhlet extractor, 60ml,length of230mm,Upper standard Taper Joint34/35, Lower standard Taper Joint19/26,siphon:Φ6mm,length of75mm | |
| SE0150ET | Extraction tube for use with Soxhlet extractor,150ml,length of230mm,Upper standard Taper Joint34/35,Lower standard Taper Joint19/26,siphon:Φ6mm,length of90mm | |
| SE0250ET | Extraction tube for use with Soxhlet extractor,250ml,length of280mm,Upper standard Taper Joint40/38,Lower standard Taper Joint24/29,siphon:Φ6mm，length of 100mm | |
| SE0500ET | Extraction tube for use with Soxhlet extractor,500ml,length of320mm,Upper standard Taper Joint50/42,Lower standard Taper Joint24/29,siphon:Φ6mm,length of130mm | |
| SE01000ET | Extraction tube for use with Soxhlet extractor,1000ml,length of395mm,Upper standard Taper Joint60/45,Lower standard Taper Joint29/32,siphon:Φ6mm,length of170mm | |
| SE02000ET | Extraction tube for use with Soxhlet extractor，2000ml，length of 445mm，Upper standard Taper Joint70/50,Lower standard Taper Joint29/32,siphon:Φ6mm,length of 200mm | |

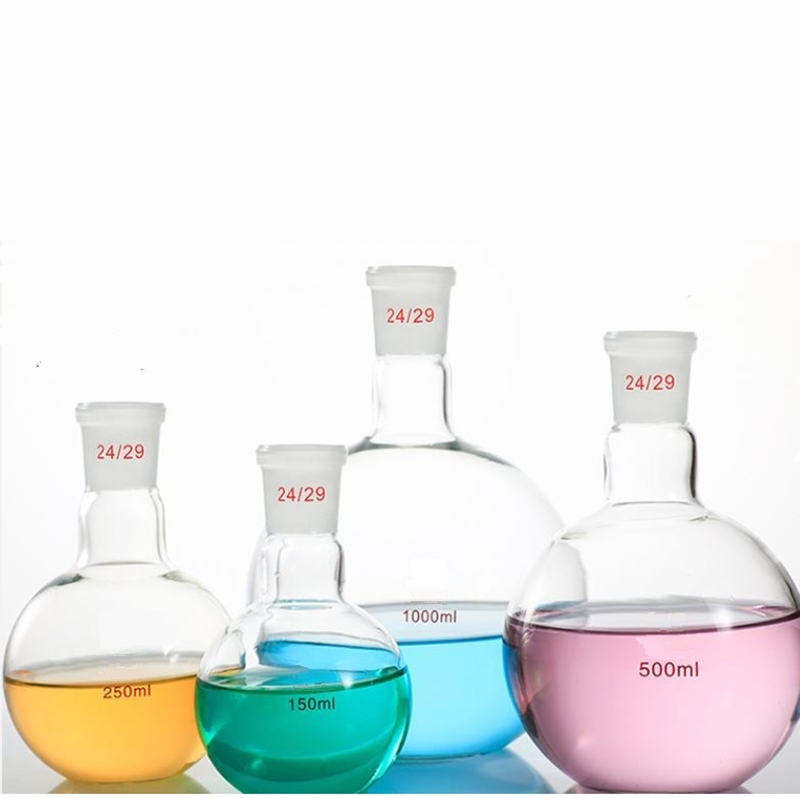

Flask |
||
| SE0060F | Flask for use with Soxhlet extractor,60ml,19/26standard Taper Joint | |
| SE0150F | Flask for use with Soxhlet extractor,150ml,19/26standard Taper Joint | |
| SE0250F | Flask for use with Soxhlet extractor,250ml,24/29standard Taper Joint | |
| SE0500F | Flask for use with Soxhlet extractor,500ml,24/29standard Taper Joint | |
| SE01000F | Flask for use with Soxhlet extractor,1000m,29/32standard Taper Joint | |
| SE02000F | Flask for use with Soxhlet extractor,2000ml,29/32standard Taper Joint | |
