Hydrophobic PTFE Membrane has good hydrophobility, excellent chemical resistance,
high porosity, excellent air permeability. The membrane is widely used for Air Monitoring and clarifying acids, bases, and solvents, propellants, analyzing hydraulic fluids, isolating RNA and so on.
Hydrophilic PTFE membrane is treated base on Hydrophobic PTFE membrane. It’s design as a Universal membrane for filtering both aqueous solutions and aggressive solvents, even mixture.
TECHNICAL SPECIFICATION
Features |
Typical Application |
|
•Strong Hydrophobic •Excellent chemical resistance •High porosity •excellent air permeability •High strength and heat resistance •Lot-to-lot consistency |
•Air Monitoring •Clarifying acids, bases, and solvents •Clarifying propellants, analyzing hydraulic fluids •Isolating RNA |
Features |
Typical Application |
| •Hydrophilic
•Excellent chemical resistance •High strength and heat resistance •Excellent Permeability of liquid •Compatible with aqueous solutions and solvents. |
•Clarifying acids, bases, and solvents •Clarifying aqueous solutions •Clarifying mixture solutions
|
Technical Parameter |
||||||||
| Membrane | Polytetrafluoroethylene (PTFE) with PP layer, Teflon | |||||||
| Color/ Filter surface | White/ Plain | |||||||

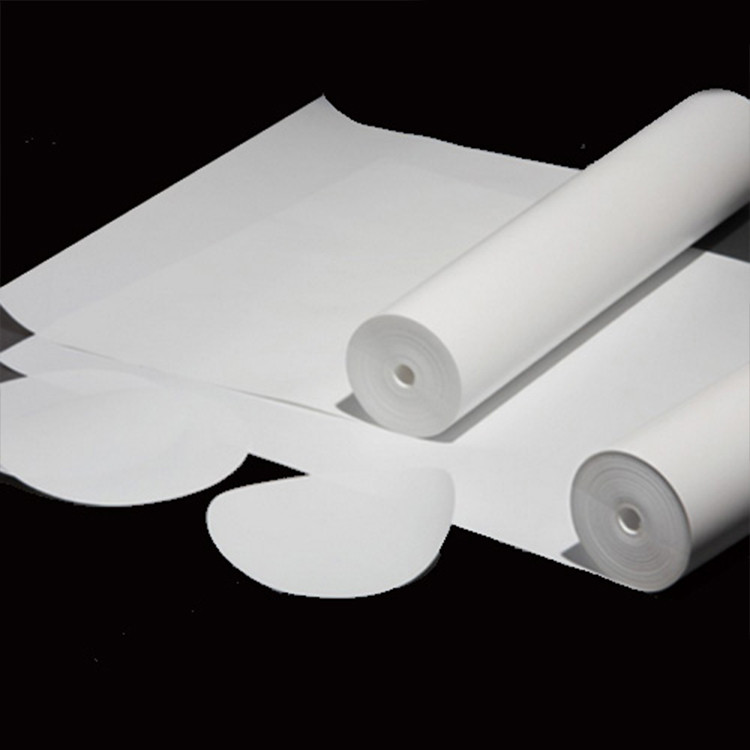

| Membrane Format | Disc，Roll， Sheet， Strip，Customizable | |||||||
| Thickness(μm) | 160±10 | |||||||
| Max operation temperature | 100 | |||||||
| PH | 1~14 | |||||||
| Hydrophobic | Pore Size(μm) | 0.1μm | 0.22μm | 0.45μm | 1.0μm | 2.0μm | 3.0μm | 5.0μm |
| Alcohol Flow rate 25℃ △p=0.07Mpa
(ml/min/cm²) |
2 | 4 | 12 | 20 | 40 | 60 | 80 | |
| Air Flow Rate (m³/m²*hr @0.01Mpa,25℃) | ≥150 | ≥600 | ≥800 | ≥1000 | ≥1500 | ≥1700 | ≥1900 | |
| Bubble Point(Bar) | ≥0.15 | ≥0.1 | ≥0.07 | ≥0.03 | ≥0.015 | ≥0.017 | ≥0.018 | |
| Hydrophilic
|
Pore Size(μm) | 0.1μm | 0.22μm | 0.45μm | 1.0μm | 3.0μm | 5.0μm | |
| Water Flow rate 25℃ △p=0.07Mpa
(ml/min/cm²) |
≥1.7 | ≥5.0 | ≥6.7 | ≥13.3 | ≥ | ≥ | ≥ | |
| Bubble Point(Bar) | ≥0.16 | ≥0.12 | ≥0.07 | ≥0.035 | ||||
| Sterilization Compatibility | Autoclave, Ethylene Oxide,E-Beam, Gamma lrradiation | |||||||
ORDER INFORMATION

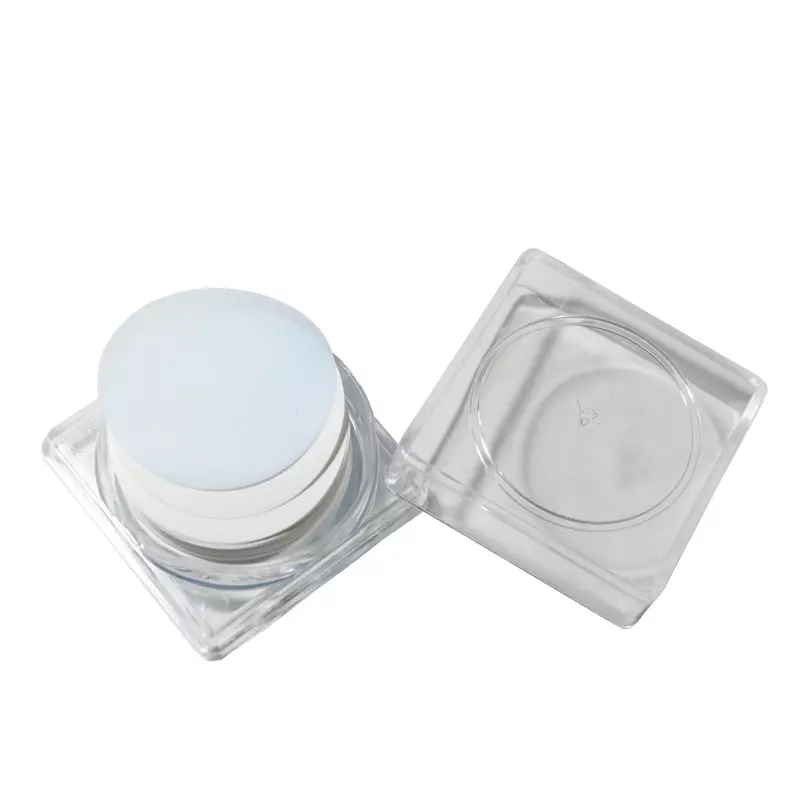

Disc Membrane
Part No. |
Wettability |
Diameter(mm) |
Pore Size(μm) |
Packing(pcs/pk) |
| M13PTB022 | Hydrophobic | 13 | 0.22 | 200/PK |
| M13PTB045 | 13 | 0.45 | 200/PK | |
| M25PTB022 | 25 | 0.22 | 200/PK | |
| M25PTB045 | 25 | 0.45 | 200/PK | |
| M47PTB022 | 47 | 0.22 | 100/PK | |
| M47PTB045 | 47 | 0.45 | 100/PK | |
| M90PTB022 | 90 | 0.22 | 100/PK | |
| M90PTB045 | 90 | 0.45 | 100/PK | |
| M142PTB022 | 142 | 0.22 | 50/PK | |
| M142PTB045 | 142 | 0.45 | 50/PK | |
| M293PTB022 | 293 | 0.22 | 25/PK | |
| M293PTB045 | 293 | 0.45 | 25/PK | |
| M13PTL022 | Hydrophilic | 13 | 0.22 | 200/PK |
| M13PTL045 | 13 | 0.45 | 200/PK | |
| M25PTL022 | 25 | 0.22 | 200/PK | |
| M25PTL045 | 25 | 0.45 | 200/PK | |
| M47PTL022 | 47 | 0.22 | 100/PK | |
| M47PTL045 | 47 | 0.45 | 100/PK | |
| M90PTL022 | 90 | 0.22 | 100/PK | |
| M90PTL045 | 90 | 0.45 | 100/PK | |
| M142PTL022 | 142 | 0.22 | 50/PK | |
| M142PTL045 | 142 | 0.45 | 50/PK | |
| M293PTL022 | 293 | 0.22 | 25/PK | |
| M293PTL045 | 293 | 0.45 | 25/PK |

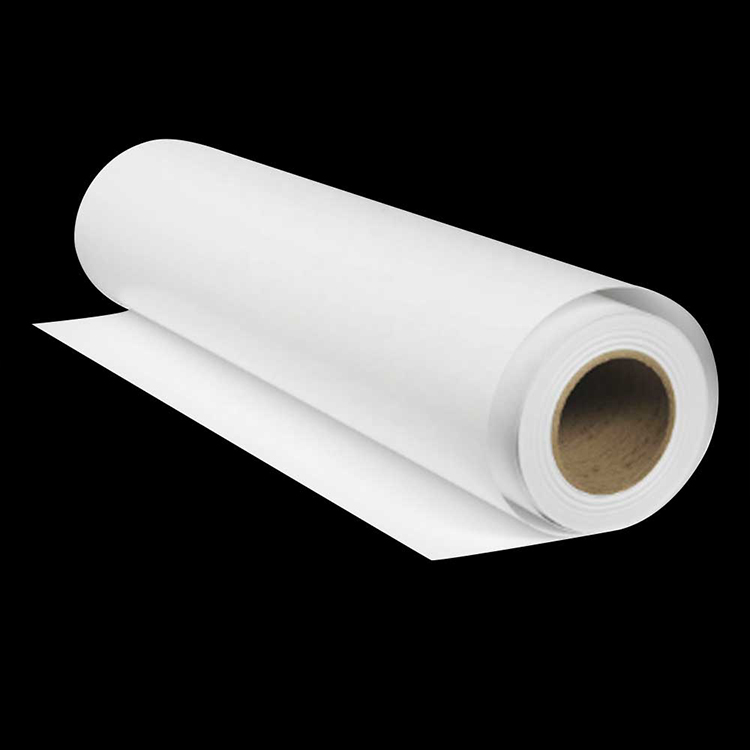

Roll Membrane
Part No. |
Wettability |
Sizes（m） |
Pore Size(μm) |
Packing(roll/pk) |
| MPTB270010 | Hydrophobic | 0.27*100 | 0.1 | 1 |
| MPTB270022 | 0.27*100 | 0.22 | 1 | |
| MPTB270045 | 0.27*100 | 0.45 | 1 | |
| MPTB270100 | 0.27*100 | 1.0 | 1 | |
| MPTB270200 | 0.27*100 | 2.0 | 1 | |
| MPTB270300 | 0.27*100 | 3.0 | 1 | |
| MPTB270500 | 0.27*100 | 5.0 | 1 | |
| MPTL270010 | Hydrophilic | 0.27*100 | 0.1 | 1 |
| MPTL270022 | 0.27*100 | 0.22 | 1 | |
| MPTL270045 | 0.27*100 | 0.45 | 1 | |
| MPTL270080 | 0.27*100 | 1.0 | 1 | |
| MPTL270100 | 0.27*100 | 2.0 | 1 | |
| MPTL270300 | 0.27*100 | 3.0 | 1 | |
| MPTL270500 | 0.27*100 | 5.0 | 1 |
