Microfil™ Syringe Filter

17 and 33mm Syringe Filters designed with a layer of GF prefilter ideal for filtering the solutions with a high load of particulate matter and to speed up and increase sample volume throughput while reducing thumb pressure. All the Syringe filters are well packed, with competitive price filters. The membranes including Nylon, CA, MCE, PES, PTFE, PVDF, GF, Regenerated Cellulose(RC) and PP. All with HPLC certification.

Features

1.Diameter: 17mm, 33mm.
2.Injection molding: High pressure resistant.

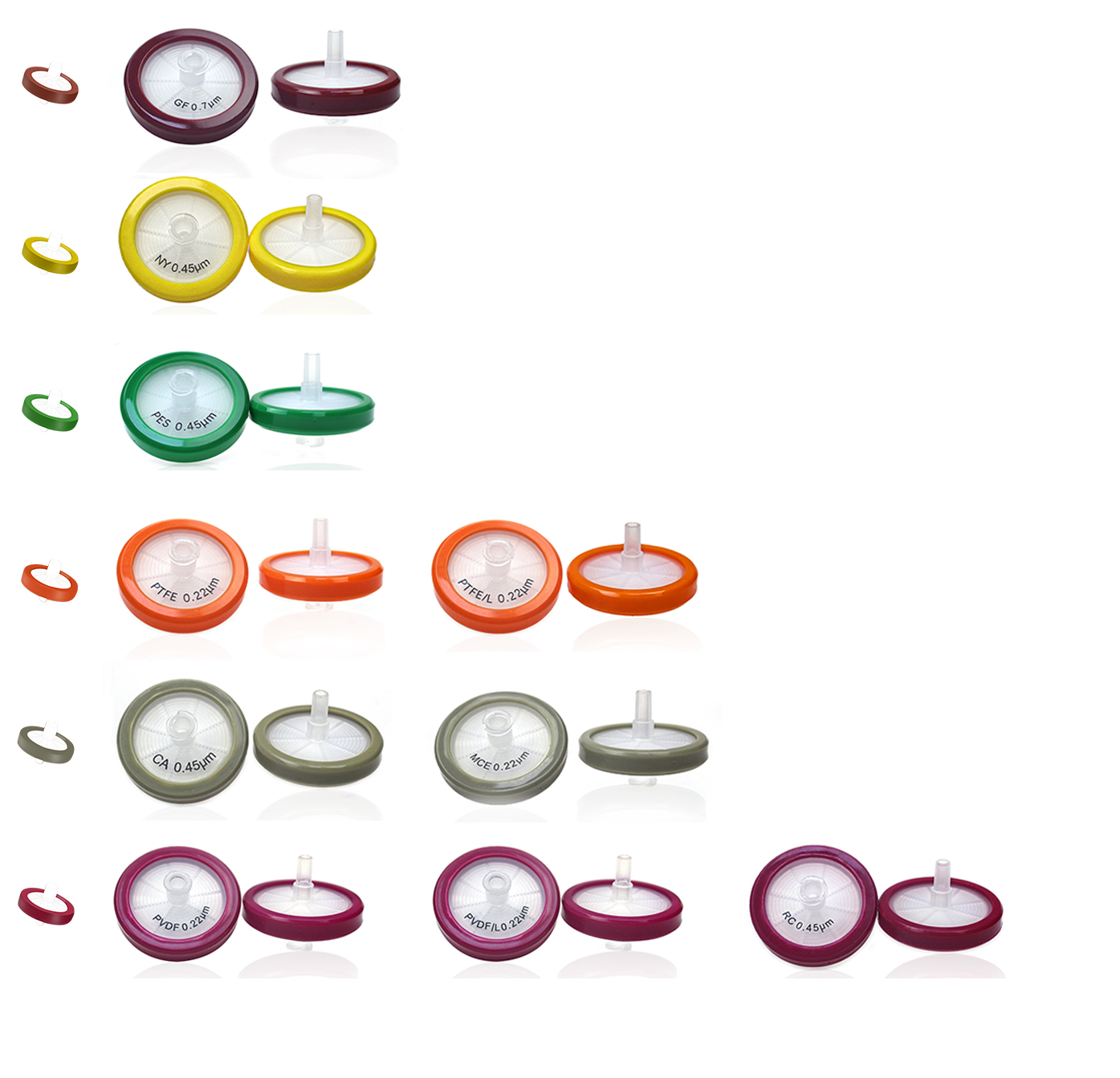

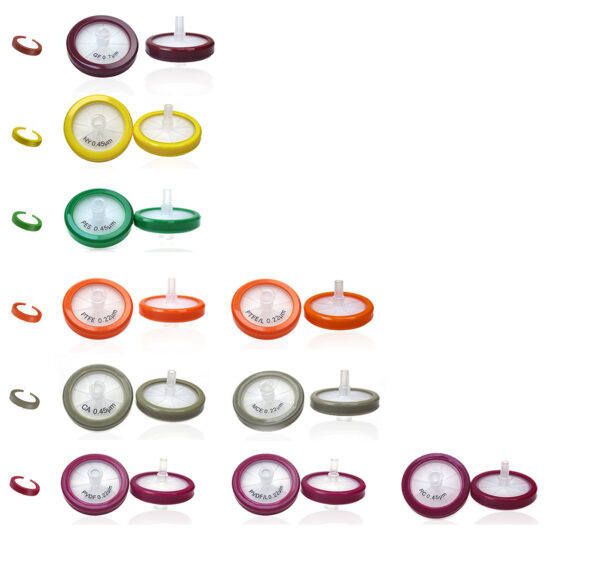

3.Color coding with rim: More popular and easier to identify the pore size and filter media.
4.Larger filtration areas: ( bigger than 33mm) Increased sample throughout.

Category: Syringe Filter

Description

TECHNICAL SPECIFICATIO

——————————————————————————————————————————————————————————————————————————————————————
Filter Media Nylon/PTFE/Hydrophilic PTFE/MCE/RC/CA/PES/PVDF/Hydrophilic PVDF
——————————————————————————————————————————————————————————————————————————————————————
Housing PP
——————————————————————————————————————————————————————————————————————————————————————
Diameter(mm)   17,33
——————————————————————————————————————————————————————————————————————————————————————
Filtration Area(cm²)    1.65,5.39——————————————————————————————————————————————————————————————————————————————————————
Sealing Technology    Injection molding—————————————————————————————————————————————————————————————————————————————————————— Pore size(μm) 0.1,0.22,0.45,1.0,3.0,5.0——————————————————————————————————————————————————————————————————————————————————————
   Max.operation pressure 6 bar@ 23℃——————————————————————————————————————————————————————————————————————————————————————
   Inlet/outlet connections Female inlet lock/Male outlet slip——————————————————————————————————————————————————————————————————————————————————————

ORDER INFORMATION

Part No.	Membrane	Diameter(mm)	Pore Size(μm)	Packing(pcs/pk)
S17NY022M	NY	17	0.22	100
S17NY045M			0.45
S33NY022M		33	0.22
S33NY045M			0.45
S17PES022M	PES	17	0.22	100
S17PES045M			0.45
S33PES022M		33	0.22
S33PES045M			0.45
S17CA022M	CA	17	0.22	100
S17CA045M			0.45
S33CA022M		33	0.22
S33CA045M			0.45
S17MCE022M	MCE	17	0.22	100
S17MCE045M			0.45
S33MCE022M		33	0.22
S33MCE045M			0.45
S17PTB022M	Hydrophobic PTFE	17	0.22	100
S17PTB045M			0.45
S33PTB022M		33	0.22
S33PTB045M			0.45
S17PTL022M	Hydrophilic PTFE	17	0.22	100
S17PTL045M			0.45
S33PTL022M		33	0.22
S33PTL045M			0.45
S17PVB022M	Hydrophobic PVDF	17	0.22	100
S17PVB045M			0.45
S33PVB022M		33	0.22
S33PVB045M			0.45
S17PVL022M	Hydrophilic PVDF	17	0.22	100
S17PVL045M			0.45
S33PVL022M		33	0.22
S33PVL045M			0.45
S17RC022M	RC	17	0.22	100
S17RC045M			0.45
S33RC022M		33	0.22
S33RC045M			0.45
S17PP022M	PP	17	0.22	100
S17PP045M			0.45
S33PP022M		33	0.22
S33PP045M			0.45
S17GF045M	GF	17	0.45	100
S17GF070M			0.7
S17GF100M			1.0
S33GF045M		33	0.45
S33GF070M			0.7
S33GF100M			1.0
