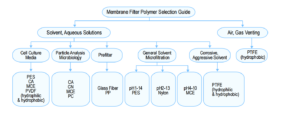

Membrane Selection Guide

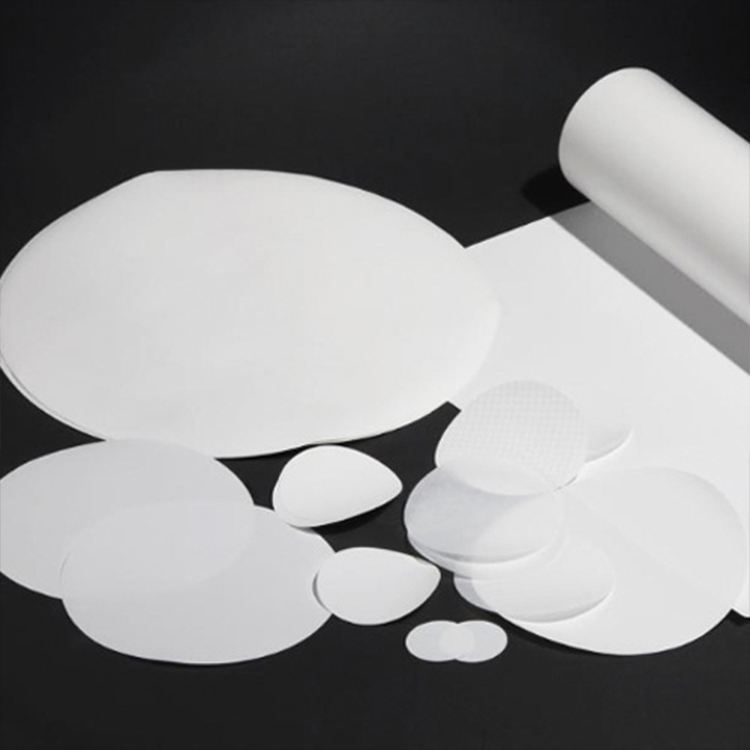

Microlab Membrane Filters with an accurately controlled pore size distribution and higher strength and flexibility, which ensure reproducibility and consistency. Microlab offers a full line of membrane materials and media for all types of liquids, solvents or gases, including PES , MCE, Nylon, PVDF , PTFE , PP, GF, CA , MCE, CN and Mesh. Disc Membrane diameters range from 13 mm to 293 mm (other customized shapes also available). which are manufactured in a ISO 9001 certified facility. Most membranes can be sterilized and individually packaged if required.

Send Inquiry
Compare
Category:
Description



TECHNICAL SPECIFICATIO



Disc Membrane Part No. Matrix

Product Code

Diameter

Filter Media

Pore Size
M 47 NY 045
M Φ13

φ25

Φ37

Φ47

Φ50

Φ90

Φ142

Φ293

Customized

 Nylon=NY

Polyethersulfone =PES

Mixed Cellulose Ester=MCE

Hydrophobic PTFE=PTB

Hydrophilic PTFE=PTL

Hydrophobic PVDF=PVB

Hydrophilic PVDF= PVL

Regenerated Cellulose= RC

Polypropylene=PP

Cellulose Acetate=CA

Cellulose Nitrate=CN

 0.1=010

0.22=022

0.45=045

0.65=065

0.8=080

1.0=100

2.0=200

3.0=300

5.0=500

8.0=800

10=1000

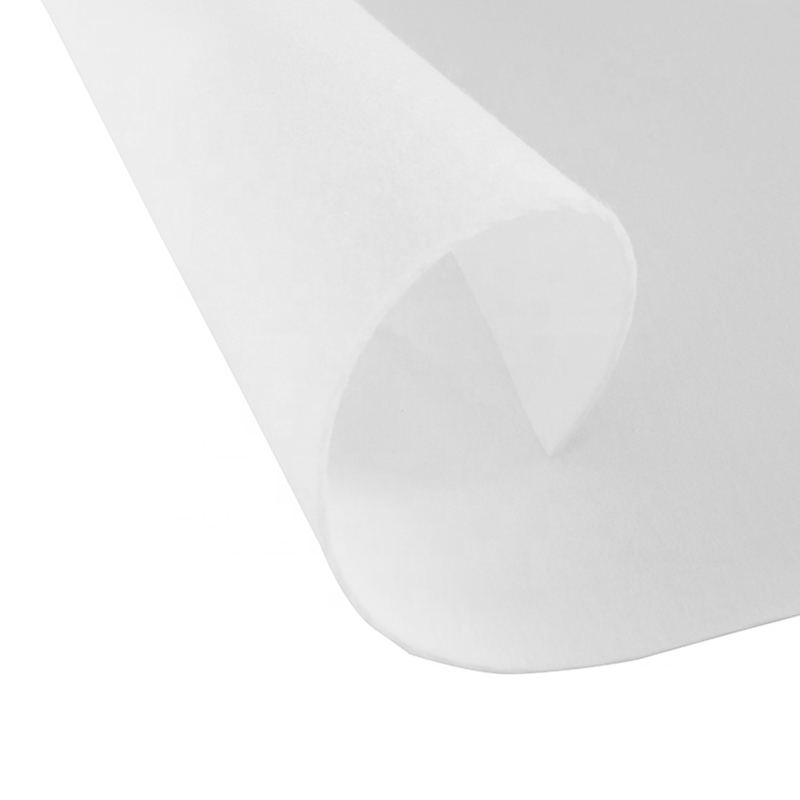

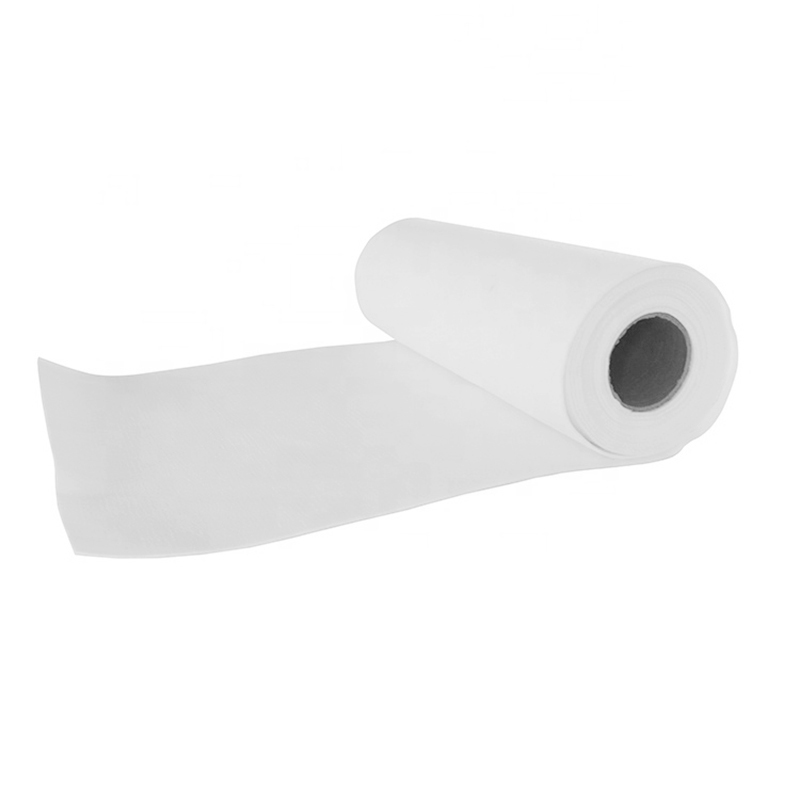

Roll Membrane  Part No. Matrix

Product Code

Filter Media

Width

Pore Size
M NY 280 045
M Nylon=NY

Polyethersulfone =PES

Mixed Cellulose Ester=MCE

Hydrophobic PTFE=PTB

Hydrophilic PTFE=PTL

Hydrophobic PVDF=PVB

Hydrophilic PVDF= PVL

Regenerated Cellulose= RC

Polypropylene=PP

Cellulose Acetate=CA

Cellulose Nitrate=CN

 270mm

280mm

300mm

Customized



 0.1=010

0.22=022

0.45=045

0.65=065

0.8=080

1.0=100

2.0=200

3.0=300

5.0=500

8.0=800

10=1000

Mesh Filter Part No. Matrix

Product Code

Diameter

Filter Media

Pore Size
ME 47 NY 045
ME Φ13

φ25

Φ37

Φ47

Φ50

Φ90

Φ142

Φ293

Customized

 Nylon Mesh=NY

PP Mesh=PP



 20=020

30=030

41=041

60=060

80=080

100=100

120=120

140=140

150=150

160=160

180=180
