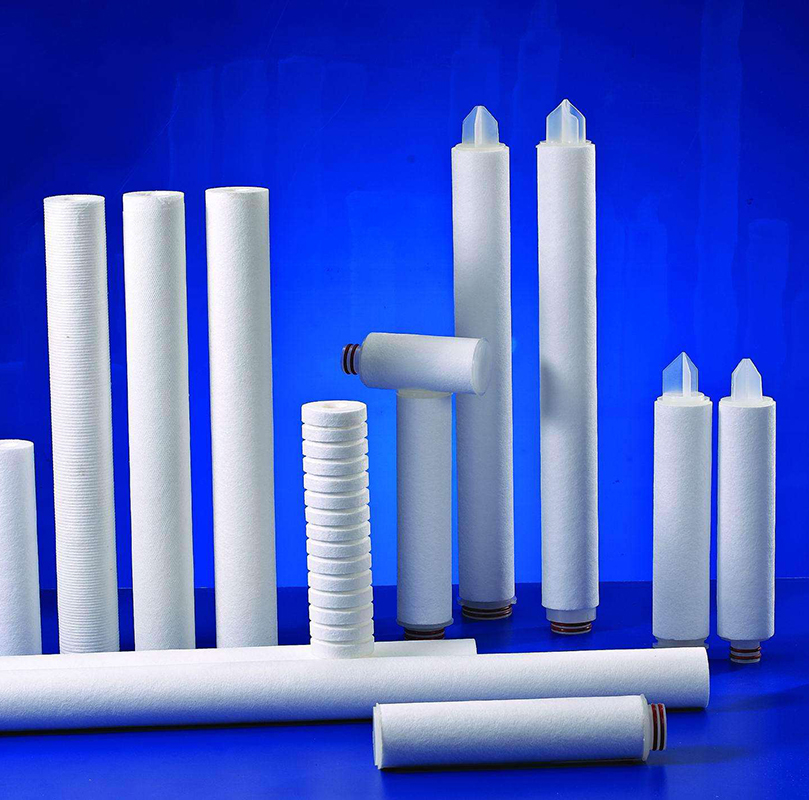

Meltblow Cartridge Filter



PP Melt Blown Filter Cartridges is Microlab standard series of melt blown filter cartridges. It features fused and intertwined polypropylene fiber without the use of chemicals or glue. The fibers are bonded randomly to form 3-D microporosity in three zones. There are fine fibers for efficient particle removal and coarse fibers for strength of the structure. Changing fiber size and density creates the needed filtration rating. With lower density on the outer surface and tighter pores when moving to the inside, it can remove contaminant effectively, such as suspended substances, particulates and rust, providing efficient filtration and long service life.

Send Inquiry
Description

TECHNICAL SPECIFICATION

1.Three-zone structure cartridge offers high dirt holding capacity and longer service life.
2.Formed by thermal bond without using binders or adhesives.
3.100% pure polypropylene will not contaminate the treated liquid.
4.Wide chemical compatibility.
5.All common adaptors are available.
6.FDA compliant material.



Dimension



[ OD ] 69mm,115mm

[ ID ]:Φ 28mm, 30mm

[ Length ]:10″ 20″ 30″ 40″,50 , 60

Material of Constructions

[ Media ] Polypropylene(PP)

[ End cap ]: Polypropylene(PP)

[ Gasket ]: Silicone, EPDM, NBR, Viton

[ Core ]: Polypropylene(PP)

Performance

[ Max. Operating temperature ] 65

[ Max. Operating DP ]: 2.0Bar@21℃

ORDER INFORMATION



Outer Diameter

Removal Rating

End Cap Type

Length

Seal Material

Core

O=63mm

B=115mm

1=1μm

3=3μm

5=5μm

10=10μm

20=20μm

50=50μm

75=75μm

100=100μm

150=150μm



F=DOE

M=222/Flat

P=222/Fin

T=226/Flat

Q=226/Fin

10=10″(254mm)

20 =20″(508mm)

30=30″(762mm)

40=40″(1016mm)

50=50″(1270mm)

60=60″(1524mm)

S=Silicone

E=EPDM

B=NBR

V=Viton

N=No core

P=PP core
