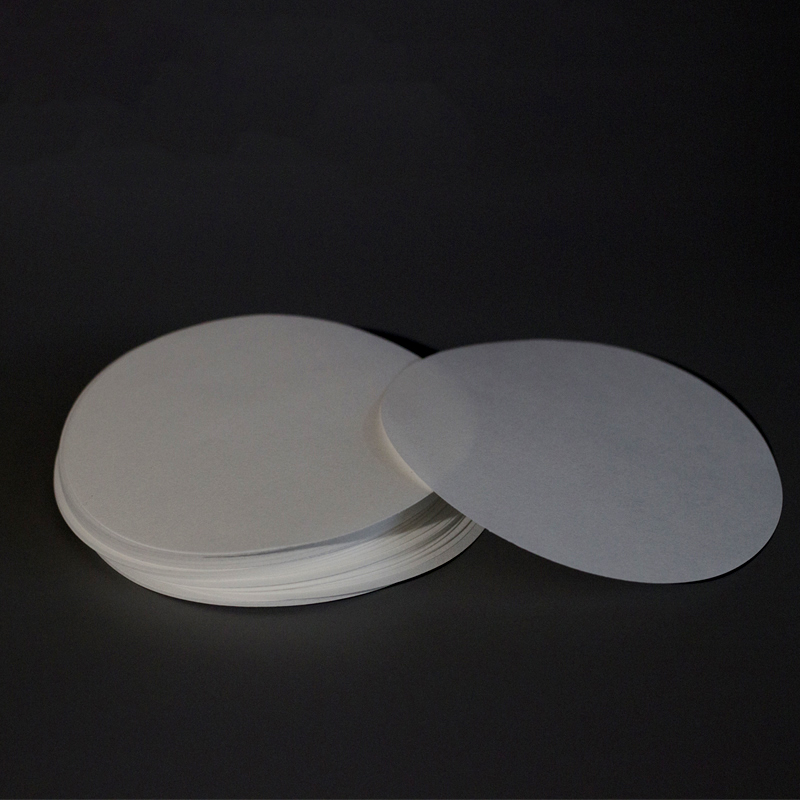

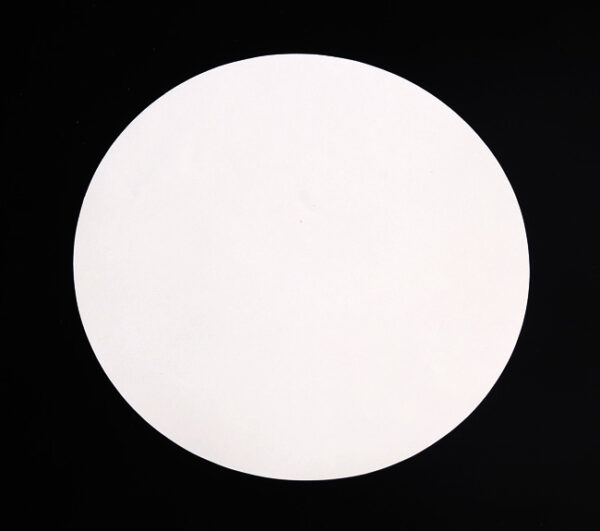

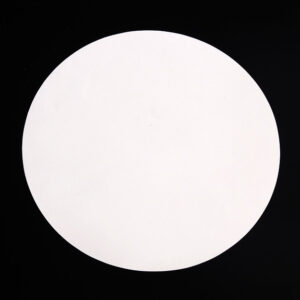

Glass Fiber Filter



Microlab Glass Fiber Filters are import from a famous Germany manufactuer. And the Glass fiber is made of 100% borosilicate glass that is binder free. These depth filters combine fast flow rate with high dirt loading capacity and retention of fine particulates. The small fibers diameters of glass media provide superior efficiency and dirt holding as compared to cellulose and other synthetic media.

Membrane Format

1.Diameter: Φ13,φ25,φ47,φ90,φ142,φ293
2.Roll：300mm*50m

Send Inquiry
Compare
Category:
Description

TECHNICAL SPECIFICATIO



Features

Applications
• 100% pure borosilicate glass

• Chemical and thermal resistance (up to 550℃)

• High dirt loading capacity

• Superior flow rates

• Fine particle retention 0.45 um-2.7 um

• Custom cuts available



• Qualitative analysis

• Laboratory analysis

• Clarification and filtration of reagents

• Pre-filter before Membrane Filter

PM2.5,PM10

Grade

Nominal Rating (μm)

Weight (g/m2 )

Thickness (μm)

Max. Temperature (℃)

Binder
GF A 1.6 56 500 None
GF B 1 140 500 None
GF C 1.2 54 500 None
GF D 2.7 120 500 None
GF F 0.7 75 500 None
GFH 1.5 58 550 None
GFG 0.45 500 None


ORDER INFORMATION

Part No.

Description
GFA047 GFA Glass Fiber, φ47mm, 1.6μm，100/pk
GFB047 GFBGlass Fiber, φ47mm, 1.0μm，100/pk
GFC047 GFC Glass Fiber, φ47mm, 1.2μm，100/pk
GFD047 GFD Glass Fiber, φ47mm, 2.7μm，100/pk
GFF047 GFF Glass Fiber, φ47mm, 0.7μm，100/pk
GFH047 GFH Glass Fiber, φ47mm, 1.5μm，100/pk
GFG047 GFG Glass Fiber, φ47mm, 0.45μm，100/pk
MGFA03050 GFA Glass Fiber Roll, 300mm*50m, 1roll/pk
MGFB03050 GFB Glass Fiber Roll, 300mm*50m, 1roll/pk
MGFC03050 GFC Glass Fiber Roll, 300mm*50m, 1roll/pk
MGFD03050 GFD Glass Fiber Roll, 300mm*50m, 1roll/pk
MGFF03050 GFF Glass Fiber Roll, 300mm*50m, 1roll/pk
MGFH03050 GFH Glass Fiber Roll, 300mm*50m, 1roll/pk
