Chromfil™ Syringe Filter

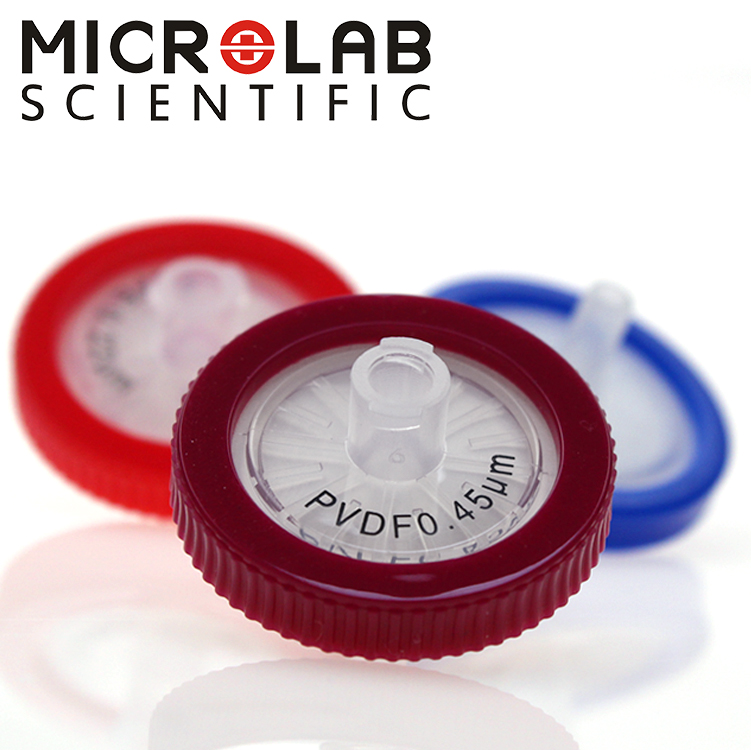

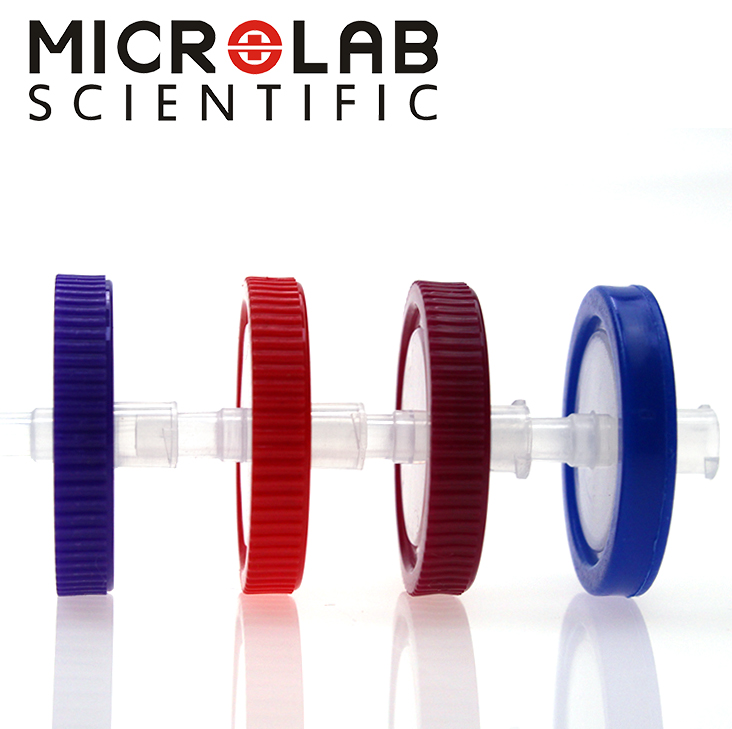

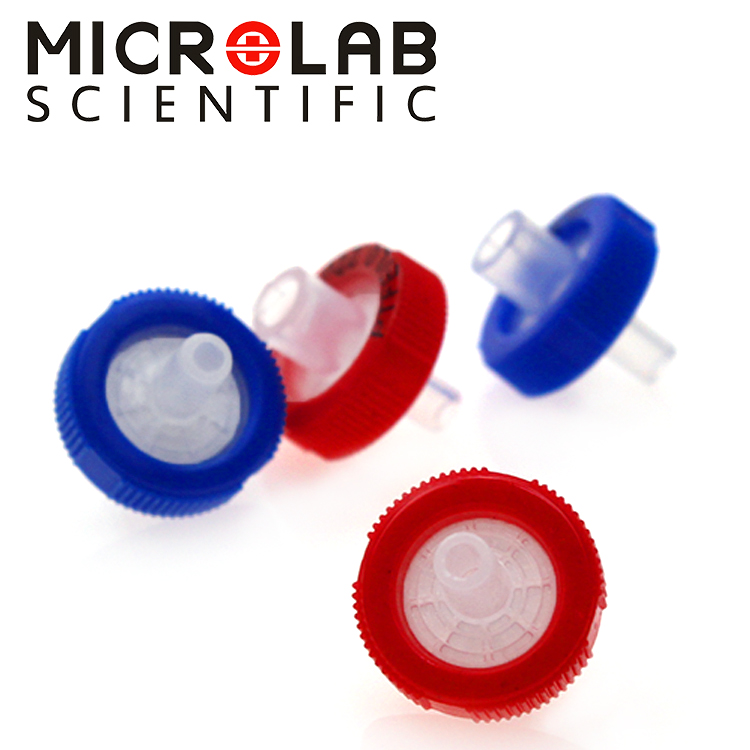

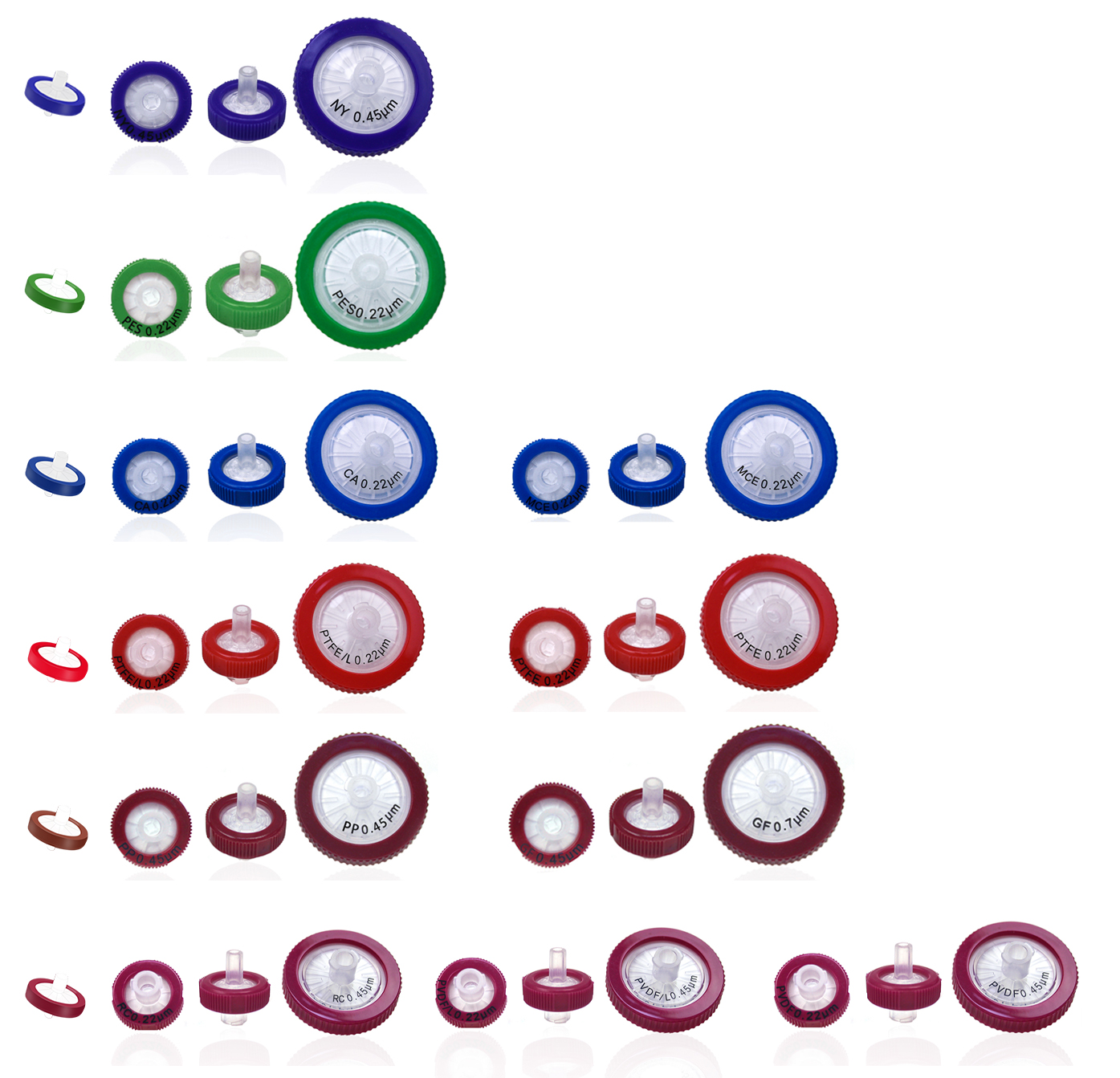

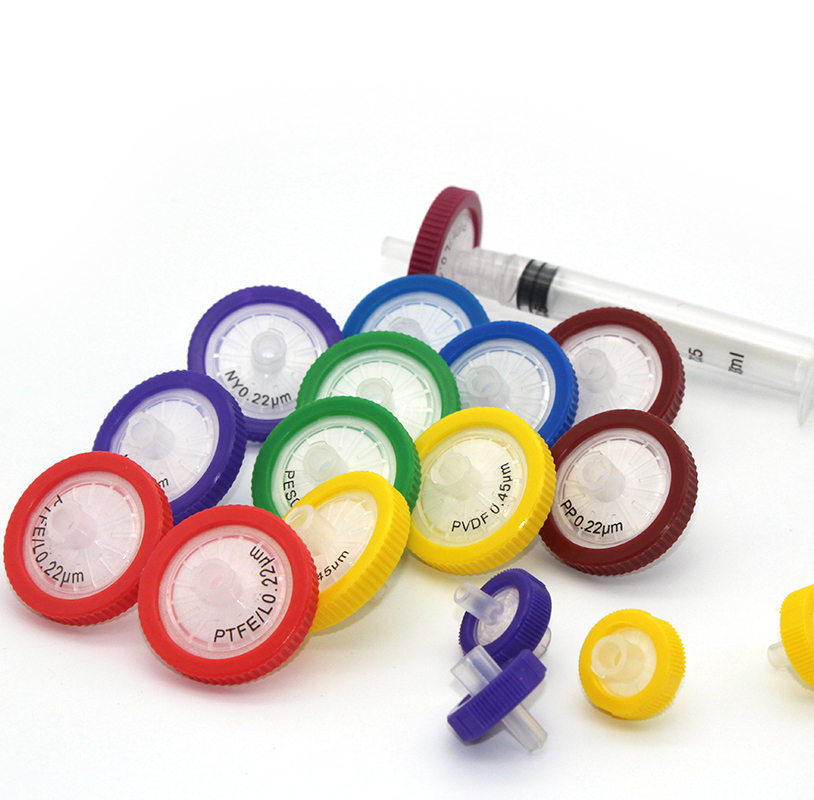

Microlab Chromfil™ Syringe Filters are syringe-operated filters for the clarification of aqueous solutions (column eluates, tissue culture additives,HPLC samples,etc.).The Classic range is available in all of the major membranes including Nylon, PTFE, PVDF, CA and PES, MCE, GF, Regenerated Cellulose(RC) and PP, which are supplied in 13mm, 25mm formats in virgin medical polypropylene housings.

Features

1.Diameter: 13mm,25mm.
2.Multiplelays membranes structure, PP or GF prefilter
3.Long life time suitable for dirty solutions
4.Ultrasonic Melting
5.Replacement of Whatman’s Puradisc Syringe Filter

Category: Syringe Filter

Description

TECHNICAL SPECIFICATIO

——————————————————————————————————————————————————————————————————————————————————————
Filter Media Nylon/PTFE/Hydrophilic PTFE/MCE/RC/CA/PES/PVDF/Hydrophilic PVDF
——————————————————————————————————————————————————————————————————————————————————————
Housing PP
——————————————————————————————————————————————————————————————————————————————————————
Diameter(mm)   13,25
——————————————————————————————————————————————————————————————————————————————————————
Pore size(μm) 0.1,0.22,0.45,1.0,3.0,5.0
——————————————————————————————————————————————————————————————————————————————————————
Sealing Technology    Injection molding
——————————————————————————————————————————————————————————————————————————————————————
Filtration Area(cm²)    1.09,4.08
——————————————————————————————————————————————————————————————————————————————————————
Max.operation pressure    6 bar@ 23℃——————————————————————————————————————————————————————————————————————————————————————
Inlet/outlet connections Female inlet lock/Male outlet slip——————————————————————————————————————————————————————————————————————————————————————

ORDER INFORMATION

Part No.	Membrane	Diameter(mm)	Pore Size(μm)	Packing(pcs/pk)
S13NY022C	NY	13	0.22	100
S13NY045C			0.45
S25NY022C		25	0.22
S25NY045C			0.45
S13PES022C	PES	13	0.22	100
S13PES045C			0.45
S25PES022C		25	0.22
S25PES045C			0.45
S13CA022C	CA	13	0.22	100
S13CA045C			0.45
S25CA022C		25	0.22
S25CA045C			0.45
S13MCE022C	MCE	13	0.22	100
S13MCE045C			0.45
S25MCE022C		25	0.22
S25MCE045C			0.45
S13PTB022C	Hydrophobic PTFE	13	0.22	100
S13PTB045C			0.45
S25PTB022C		25	0.22
S25PTB045C			0.45
S13PTL022C	Hydrophilic PTFE	13	0.22	100
S13PTL045C			0.45
S25PTL022C		25	0.22
S25PTL045C			0.45
S13PVB022C	Hydrophobic PVDF	13	0.22	100
S13PVB045C			0.45
S25PVB022C		25	0.22
S25PVB045C			0.45
S13PVL022C	Hydrophilic PVDF	13	0.22	100
S13PVL045C			0.45
S25PVL022C		25	0.22
S25PVL045C			0.45
S13RC022C	RC	13	0.22	100
S13RC045C			0.45
S25RC022C		25	0.22
S25RC045C			0.45
S13PP022C	PP	13	0.22	100
S13PP045C			0.45
S25PP022C		25	0.22
S25PP045C			0.45
S13GF045C	GF	13	0.45	100
S13GF070C			0.70
S13GF100C			1.0
S25GF045C		25	0.45
S25GF070C			0.70
S25GF100C			1.0
